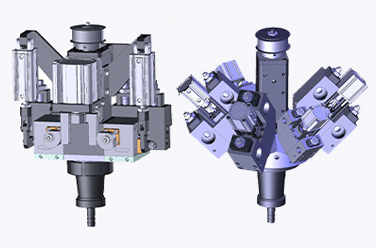

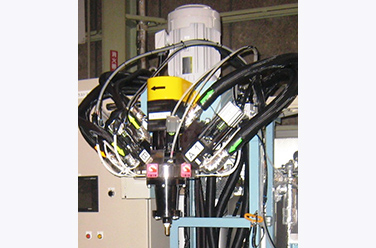

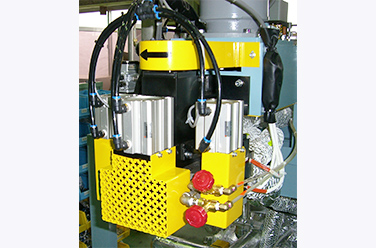

Low Pressure Type Mixing Head
Description
Have a large lineup of mixing heads for automobiles / insulation / Heat Insulator, Building Materials/ medical / industrial / life / electricity for foaming and non-foaming.
Discharge capacity is 0.02 to 150Kg / min for 2 to 6 components.
Details
Application
- Automotive related applications (seat cushions, air filters, bound bumpers, etc.)
- Insulation, building material applications (wall materials, ceiling materials, refrigerated panels, pipe covers, phenol insulation materials, railway sleepers, vibration isolation pads, etc.)
- Medical use (dialyzer, etc.)
- Industrial applications (printing rollers, cleaning blades, roller casters, papermaking belts, abrasives, water treatment, etc.)
- Daily use (sole, flower frog, lens, seismic gel, etc.)
Features

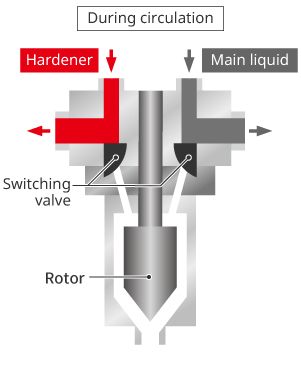

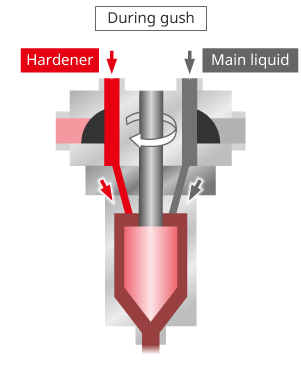

- Head switching valve mechanism makes it possible to simultaneously discharge the main agent and curing agent when discharging is ON / OFF.
- By adjusting the pressure during circulation and discharge, there is no flow rate fluctuation immediately after discharge.
- A special seal has been adopted for the rotor shaft seal to achieve a long life.
- Select a rotor shape that suits the raw material from abundant mixing rotor.
- It is also possible to pass cooling water inside the rotor.
Inquiry about Mixing Head
